SH7 2-in-1 Thermal Imager Multimeter
SH7 2-in-1 Thermal Imager Multimeter
Description:

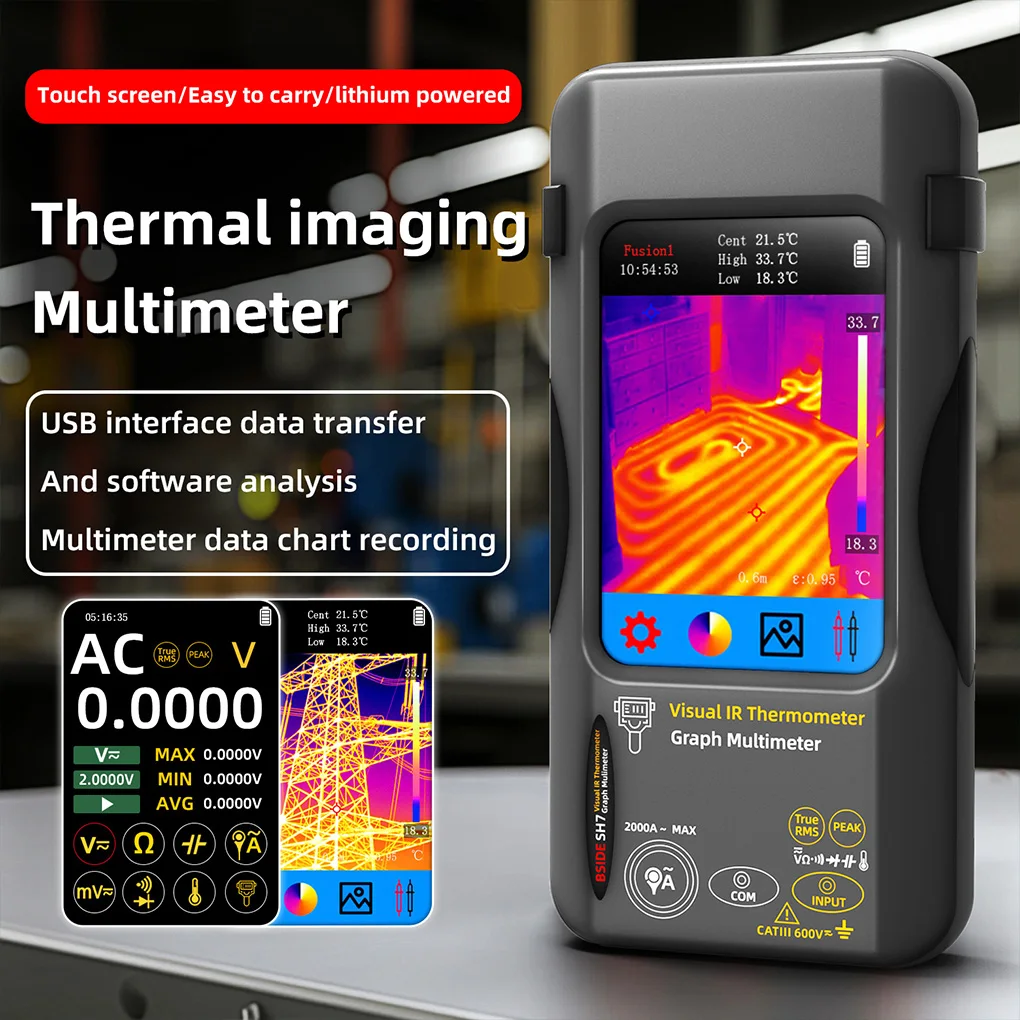

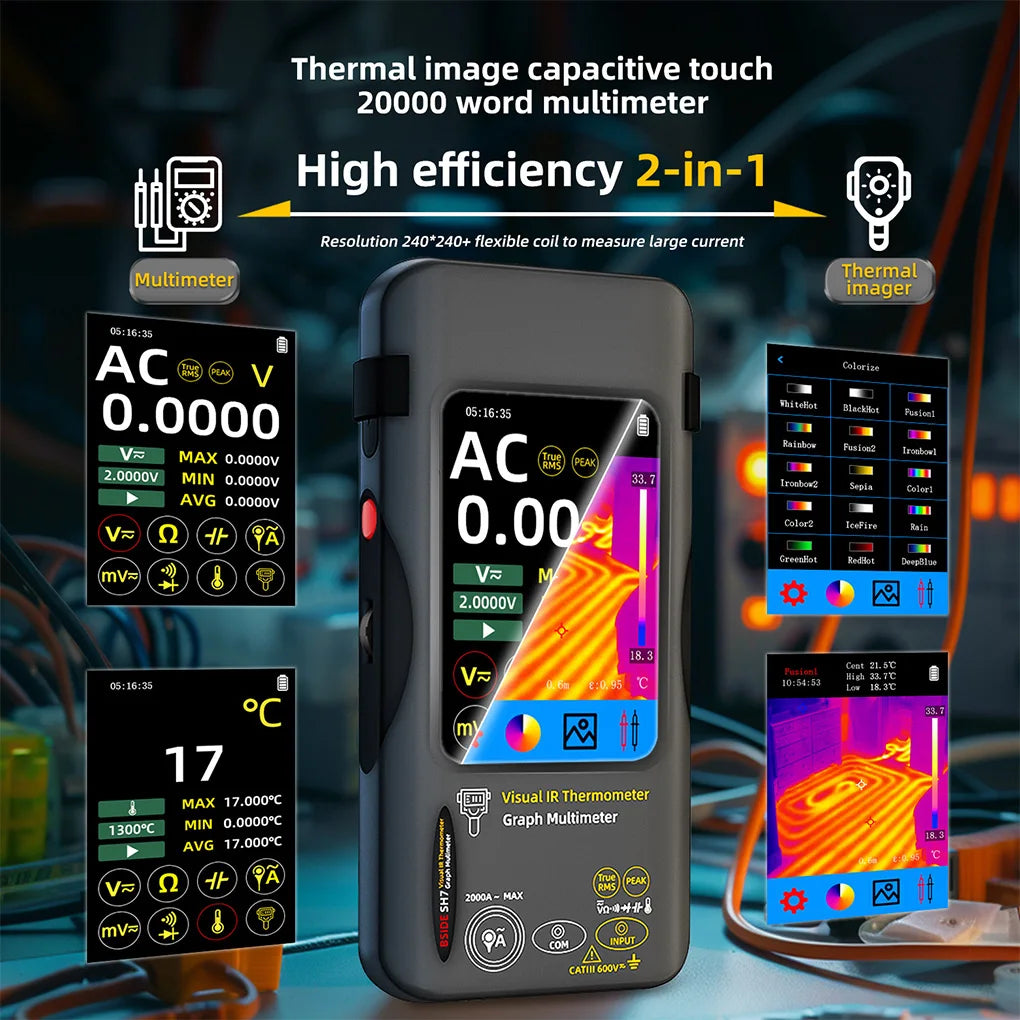

The SH7 2-in-1 Thermal Imager Camera combines infrared thermal imaging and a 20000-count digital multimeter in one compact tool. With a 320x320 display, it is ideal for automotive diagnostics, pipe inspection, heating system checks, electrical troubleshooting, and maintenance work.
This multifunction device helps detect temperature differences, locate faults, inspect circuits, and identify heating issues quickly and accurately, making it a practical tool for electricians, mechanics, technicians, and DIY users.
SPECIFICATIONS
Battery Included: Yes
Brand Name: FangNymph
Certification: NONE
Display Size: 2.0 - 3.9 Inches
High-concerned chemical: None
Is Smart Device: No
Maximum temperature: Other
Minimum temperature: Other
Origin: Mainland China
Power Source: Button Battery
Style: Handheld
Thermal pixels: Other
hign-concerned chemical: none
mpn: none
product1: sh7 digital thermal imaging multimeter
series number1: 2-in-1 ir camera ma-cro lens
series number2: auto ranging
series number3: 320 resolution 20000 counts high accuracy voltage test pro
series number4: for electrical diagnostics
Description:
High Accuracy: This SH7 Digital Thermal Imaging Multimeter ensures precise voltage tests with 20000 counts high accuracy, for electrical diagnostics

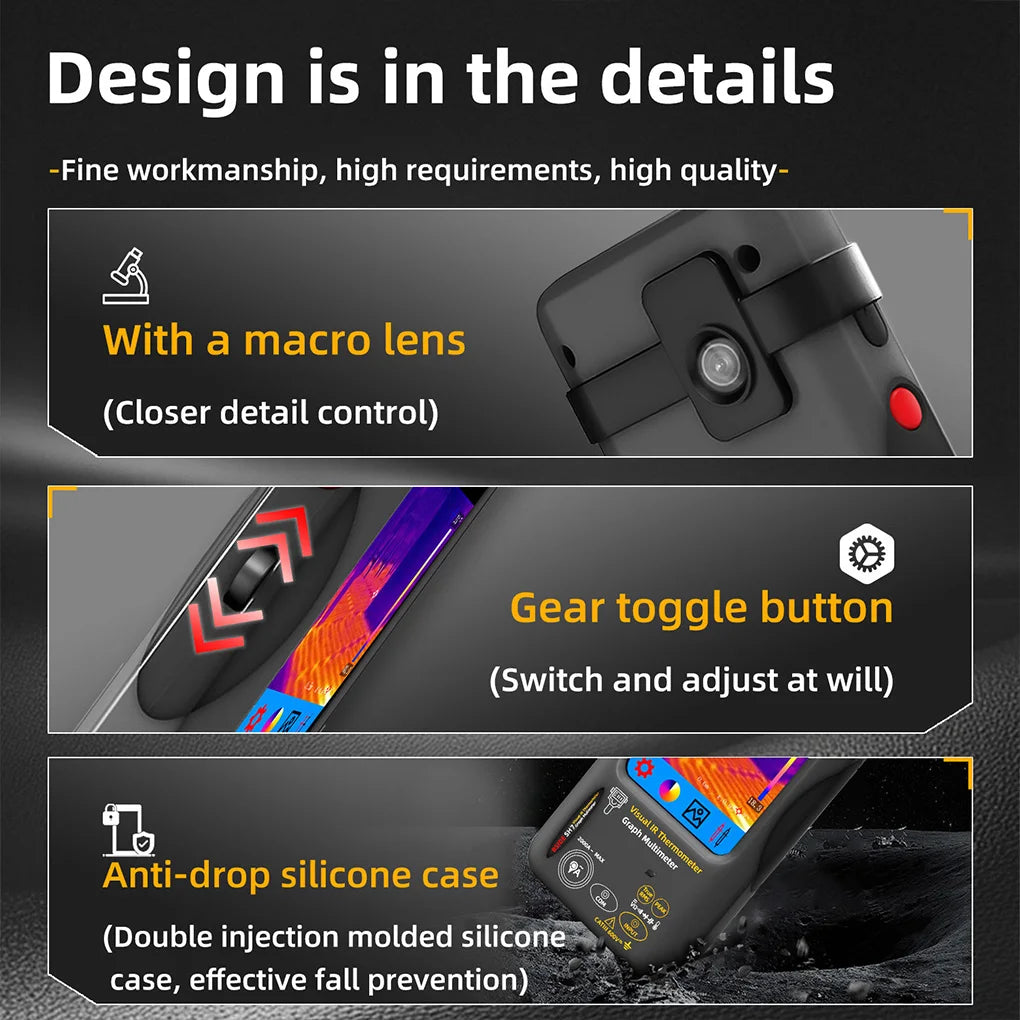

2-in-1 IR Camera Lens: Equipped with a built-in IR camera and a lens, this multimeter can provide detailed thermal imaging and close-up inspection for various applications
Auto Ranging: The SH7 Multimeter features auto ranging function, making it easy to use for professionals and DIYers alike, saving time and effort on manual range selection
320 Resolution: With a resolution of 320, this multimeter can capture clear and sharp thermal images, allowing for accurate analysis and troubleshooting on electrical systems
For Electrical Diagnostics: This versatile multimeter is designed for electrical diagnostics, offering reliable and efficient performance for professionals in the field
Specification:
Name:Thermal Imaging Camera Multimeter
Thermal Imaging Camera: 320 x 320 resolution
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Response Band: 8-14pm
Noise Equivalent Temperature Difference (NETD): ≤60mK(@25℃,F#1.0)
Spatial resolution (IFOV): 8.89mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35mm
Temperature measurement resolution: 0.1℃
Temperature range: -20℃~1300℃(-4°~2372°F)/0.1℃.

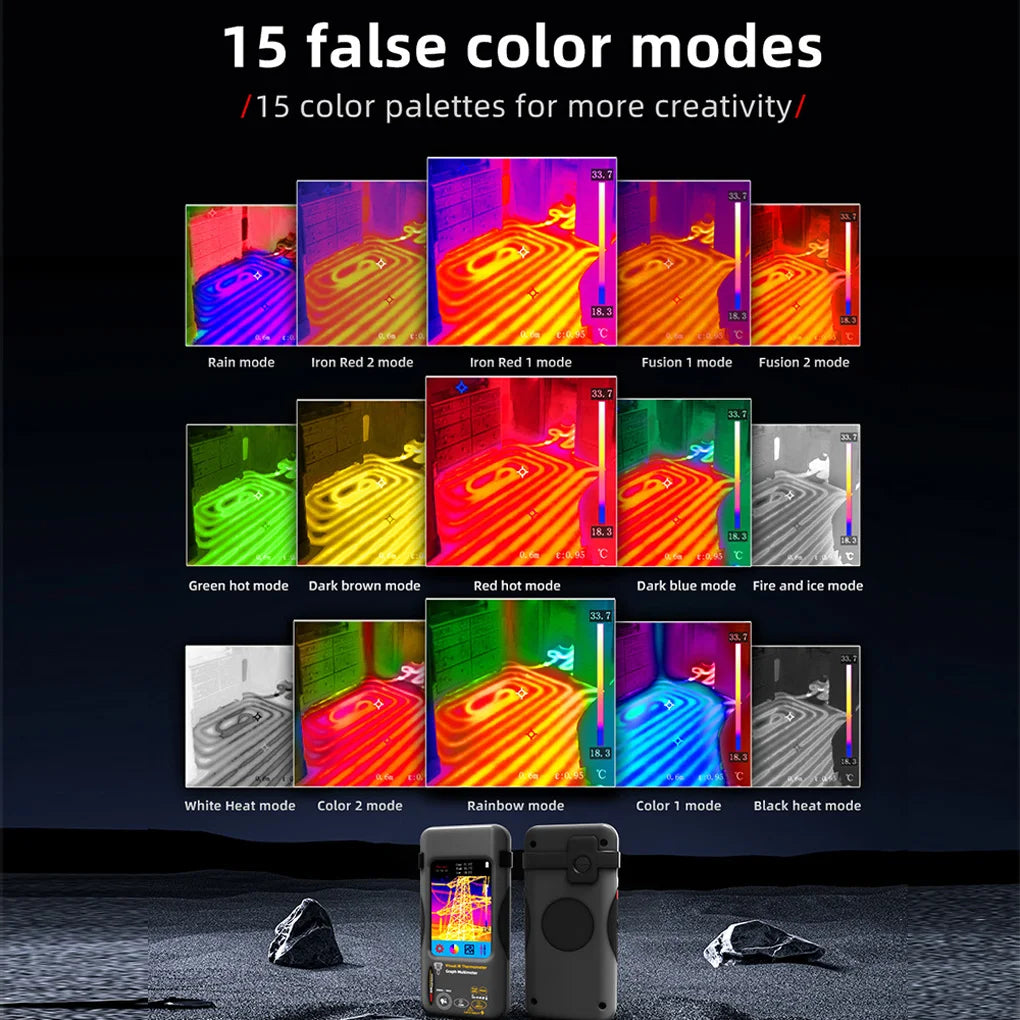

15 kinds of color palettes: white heat, black heat, fusi-on 1, rainbow, fus-ion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue
Screen Display resolution: 480*320
Image storage: 30000 pictures

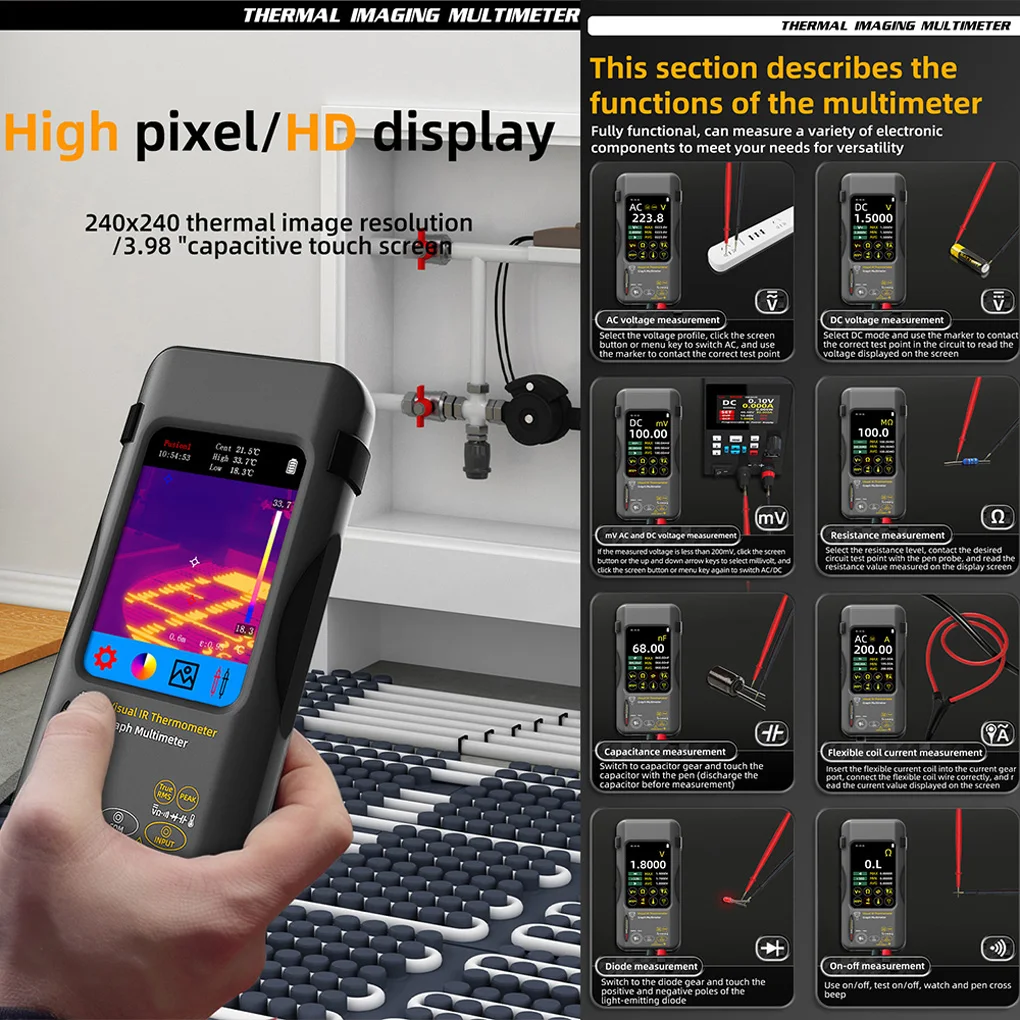

Multimeter mode:
DC Voltage (V):
2.0000V/0.0001V/±(0.05%+3)
20.000V/0.001V/±(0.05%+3)
200.00V/0.01V/±(0.5%+3)
1000V/0.1V/±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV/±(0.1%+3)
200.00mV/0.01mV/±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V/±(0.5%+3)
20.000V/0.001V/±(0.5%+3)
200.00V/0.01V/±(0.5%+3)
750V/0.1V/±(0.5%+3)
AC Voltage (mV):
20.000mV/0.001mV/±(0.5%+3)
200.00mV/0.01mV/±(0.5%+3)
Resistances:
200.00Ω/0.01Ω/±(0.5%+3)
2.0000kΩ/0.0001kΩ/±(0.2%+3)
20.000kΩ/0.001kΩ/±(0.2%+3)
200.00kΩ/0.01kΩ/±(0.2%+3)
2.0000MΩ/0.0001MΩ/±(1.0%+3)
20.000MΩ/0.001MΩ/±(1.0%+3)
200.00MΩ/0.01MΩ/±(5.0%+5)
Capacitors:
999.99nF/0.01nF/±(5.0%+5)
9.999uF/0.001μF/±(2.0%+5)
999.99uF/0.01μF/±(2.0%+5)
99.999mF/0.001mF/±(5.0%+10)

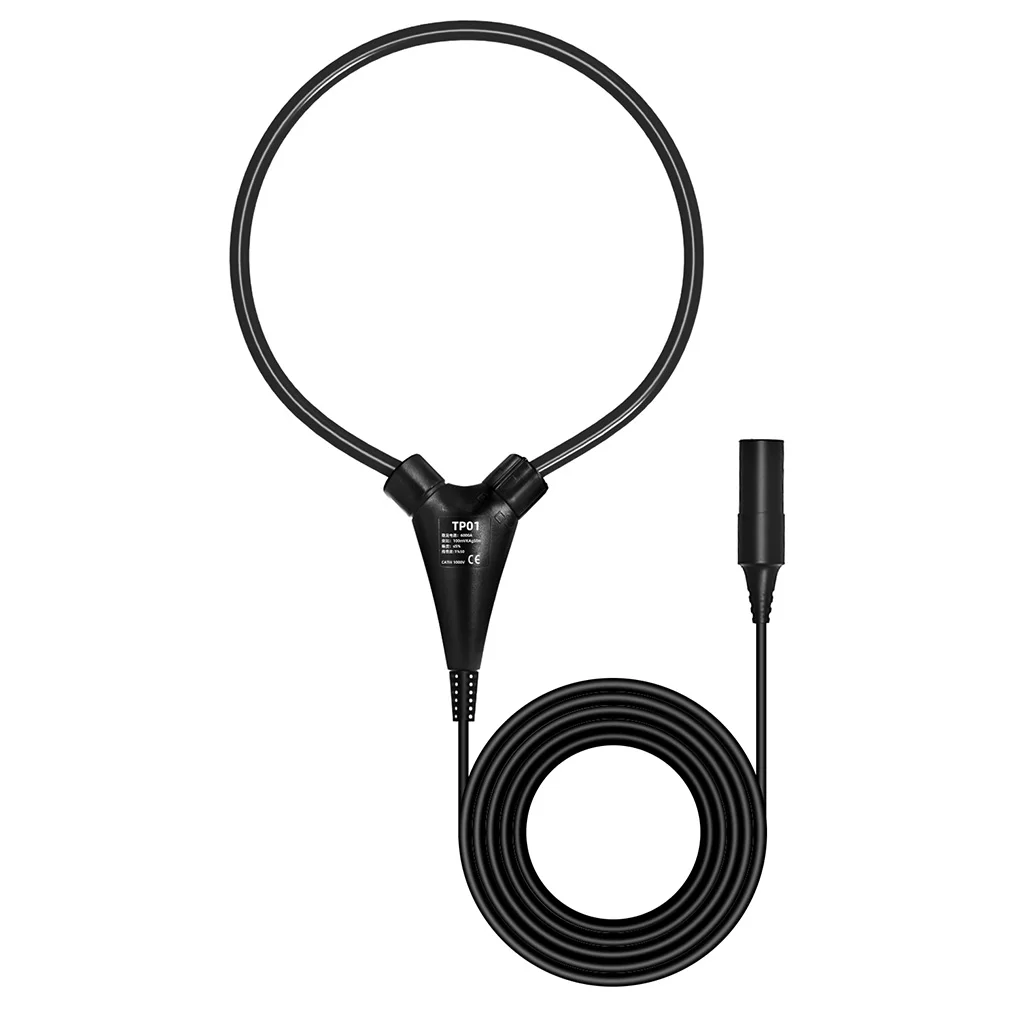

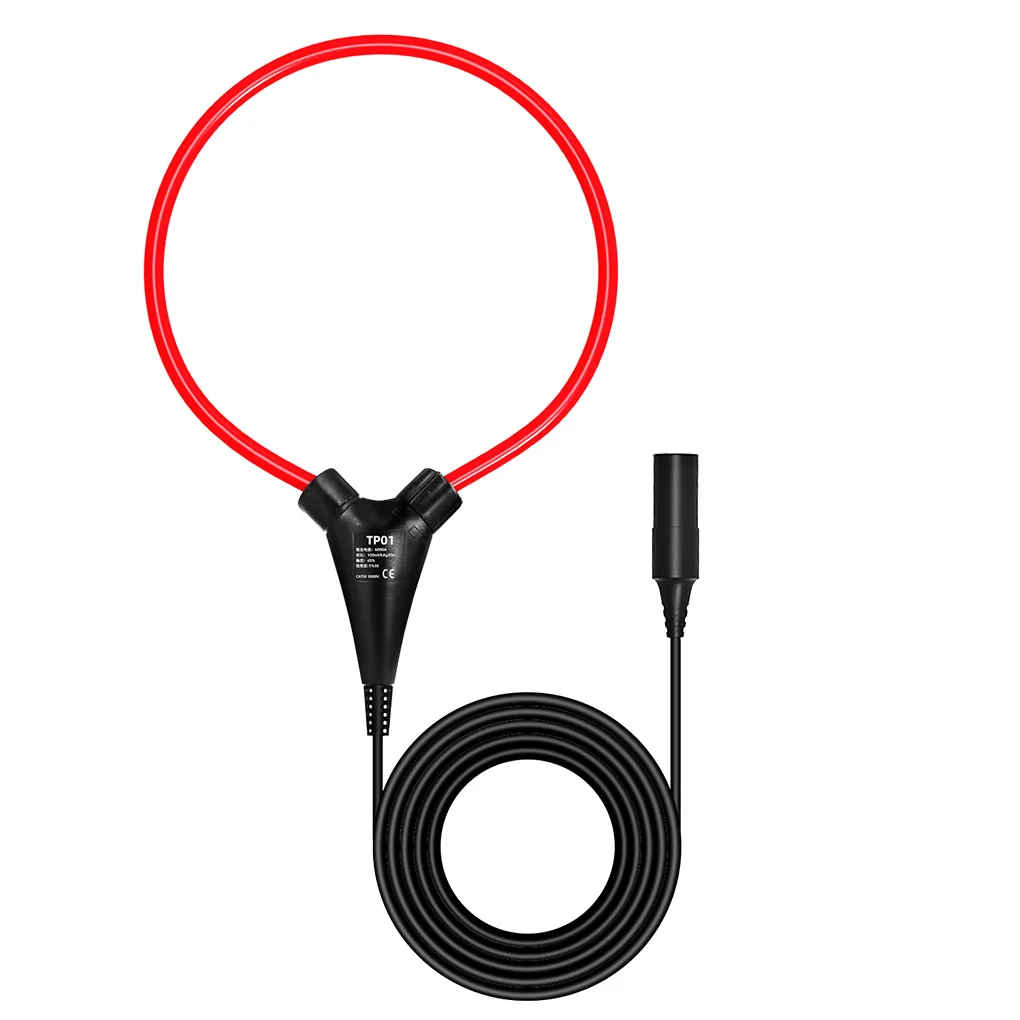

Flexible Current Clamp AC Current:
200.0A/0.1A
2000A/1A
Temperature:
(-20~1300)℃/1℃/±(2.0%+5)
(-4~2372)℉/1℉/±(2.0%+5)
Diodes: Yes
Continuity: Yes

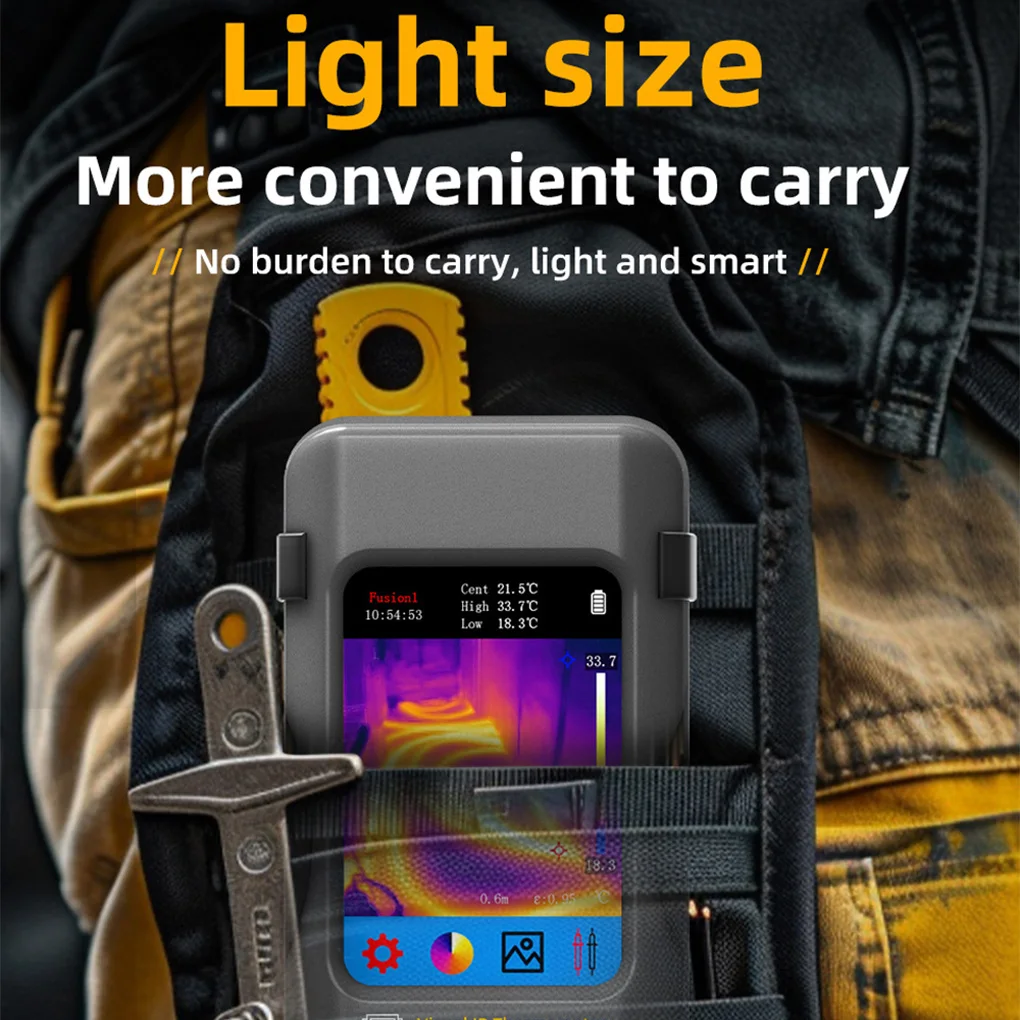

Size: 169*81*26.8mm
Type:SH7 Multimeter/Flexible coil/Ma-cro lens(Optional)
Note:
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.

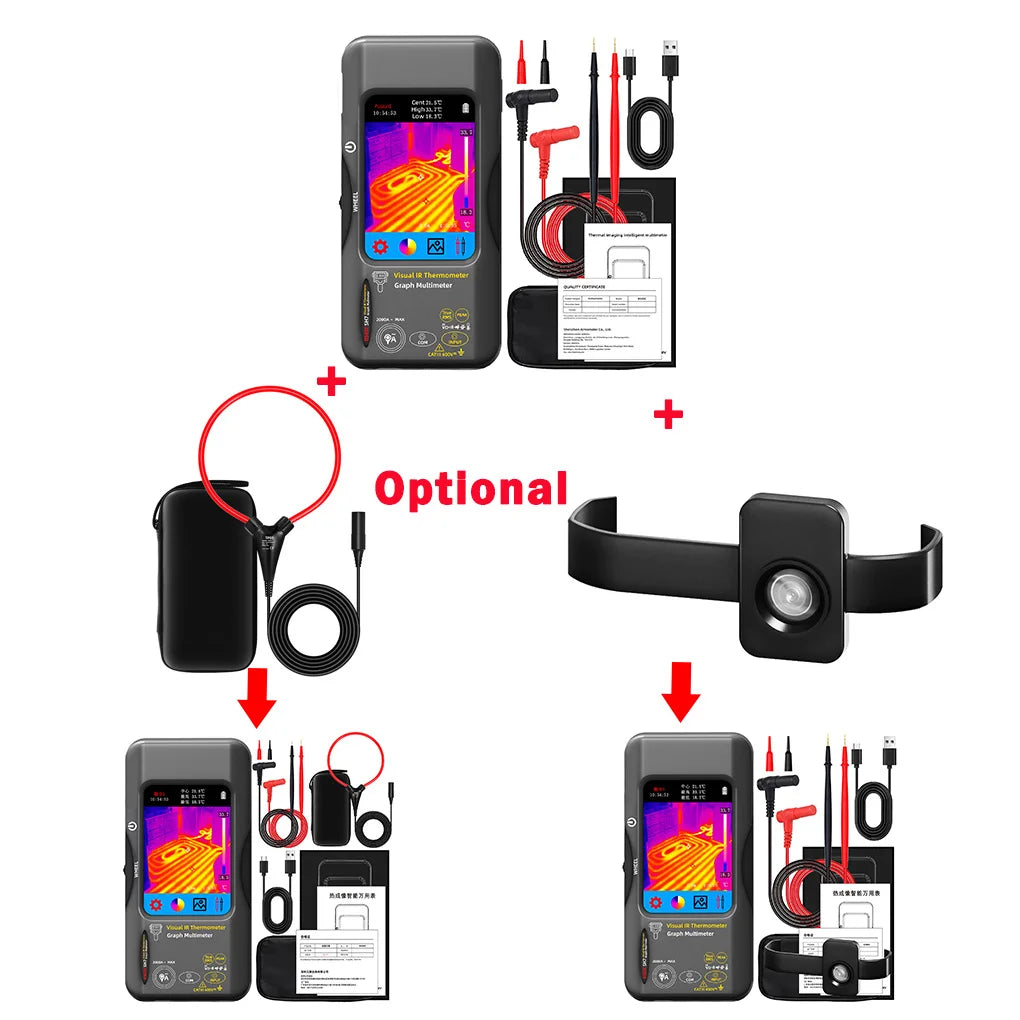

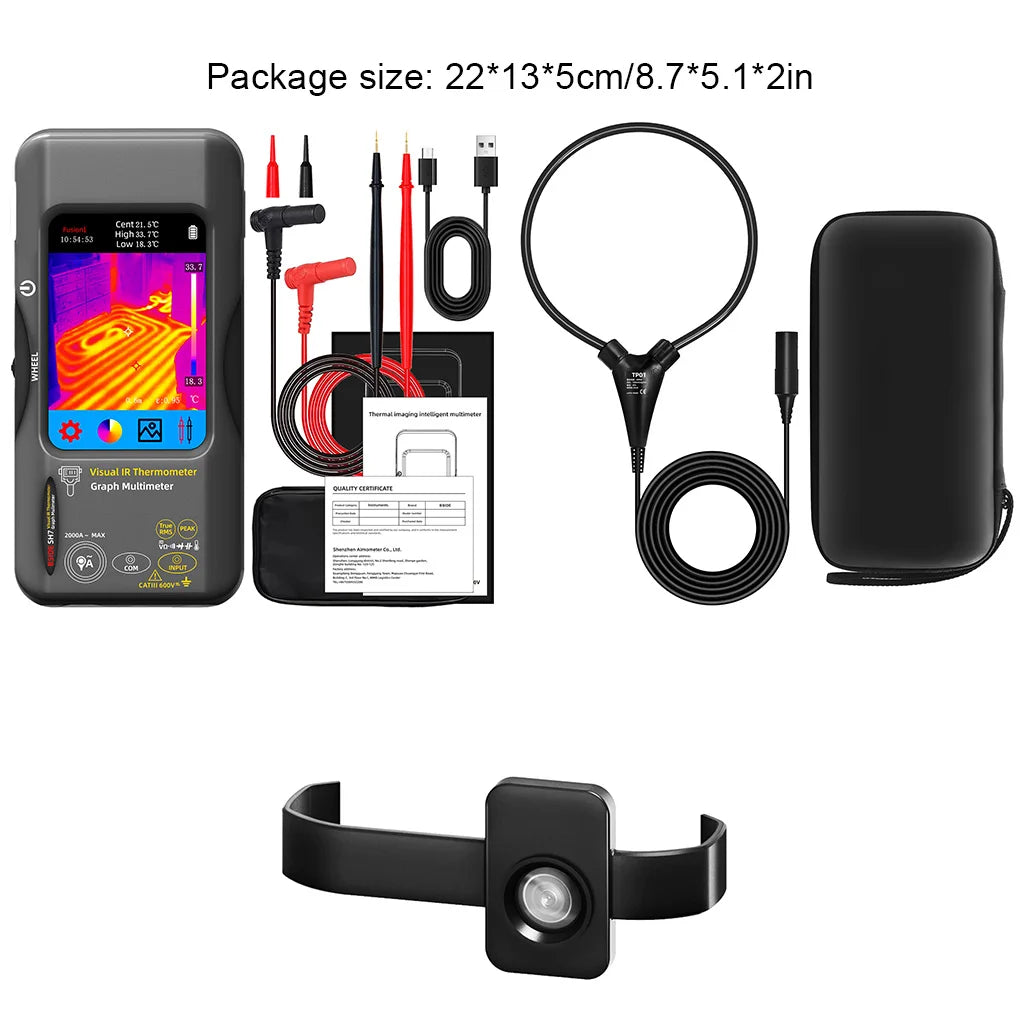

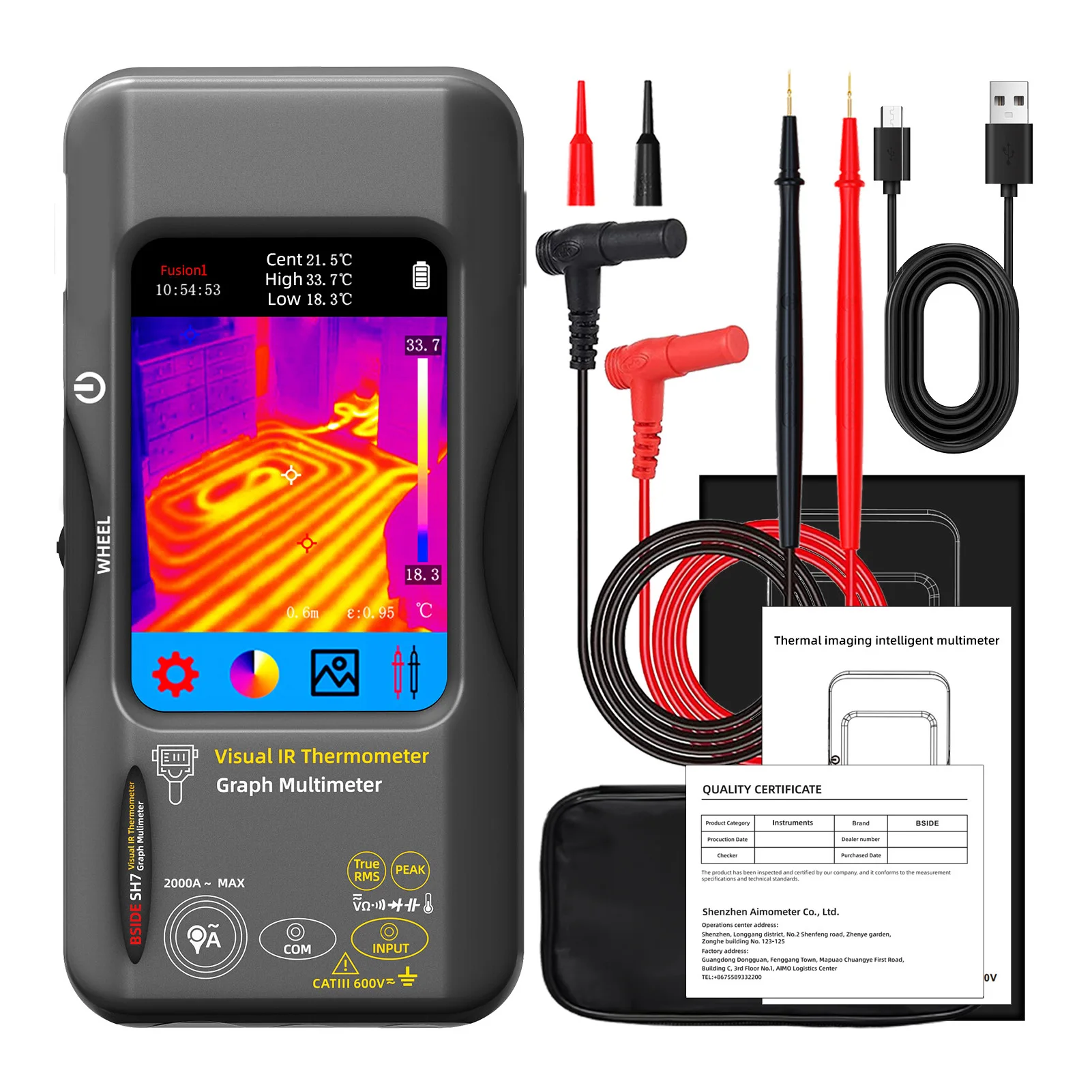

Package Includes:
1×Thermal imaging camera multimeter
1×thermocouples
1×Test Leads
1×Storage bag
1 x Charging Cable
1 x Instruction manual
OR

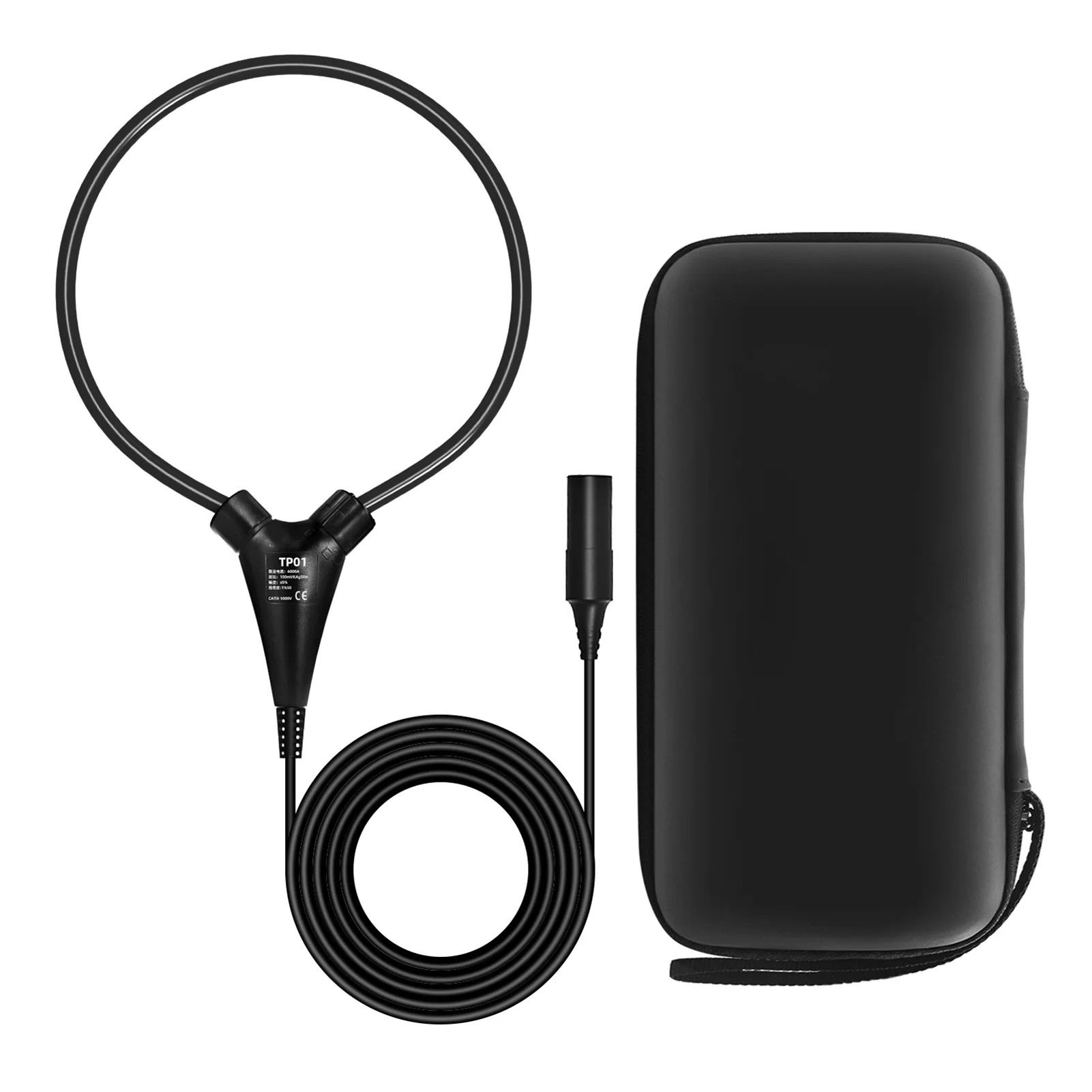

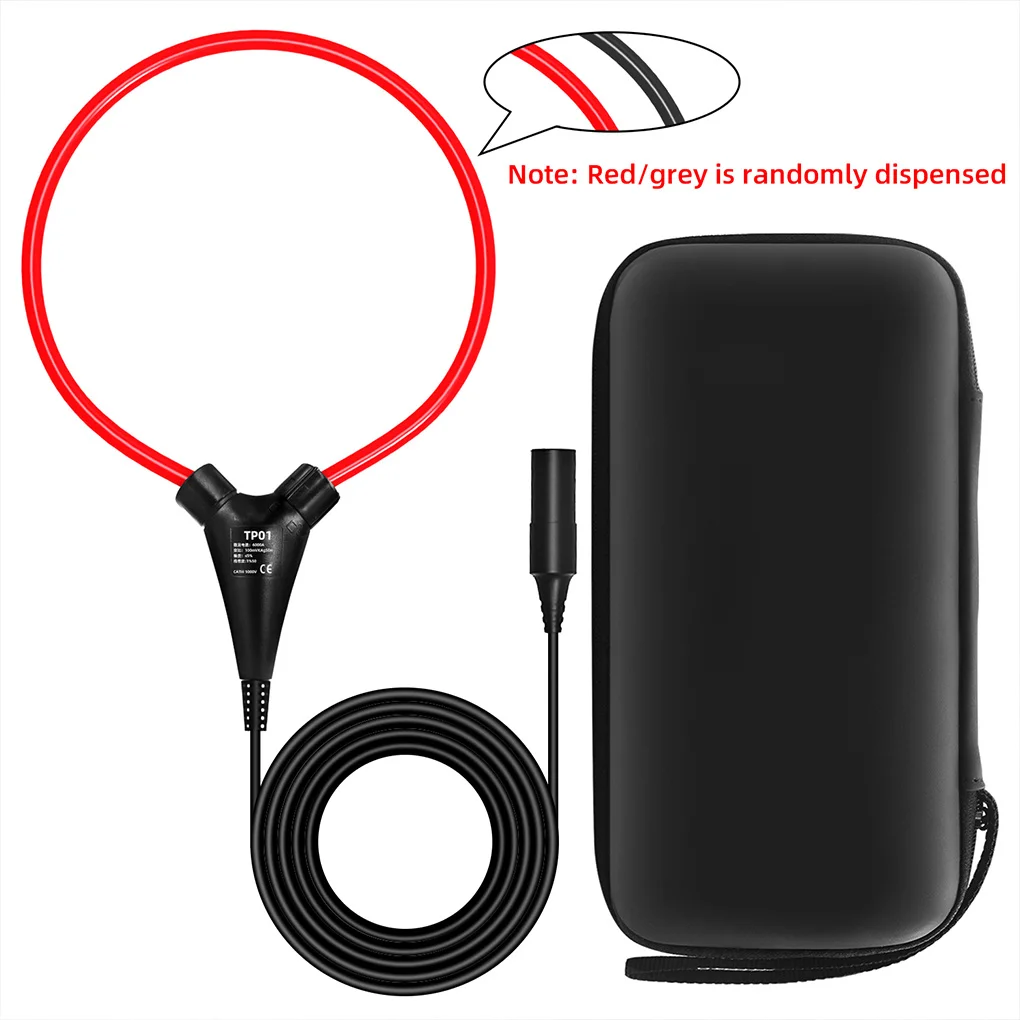

1x Flexible coil
OR

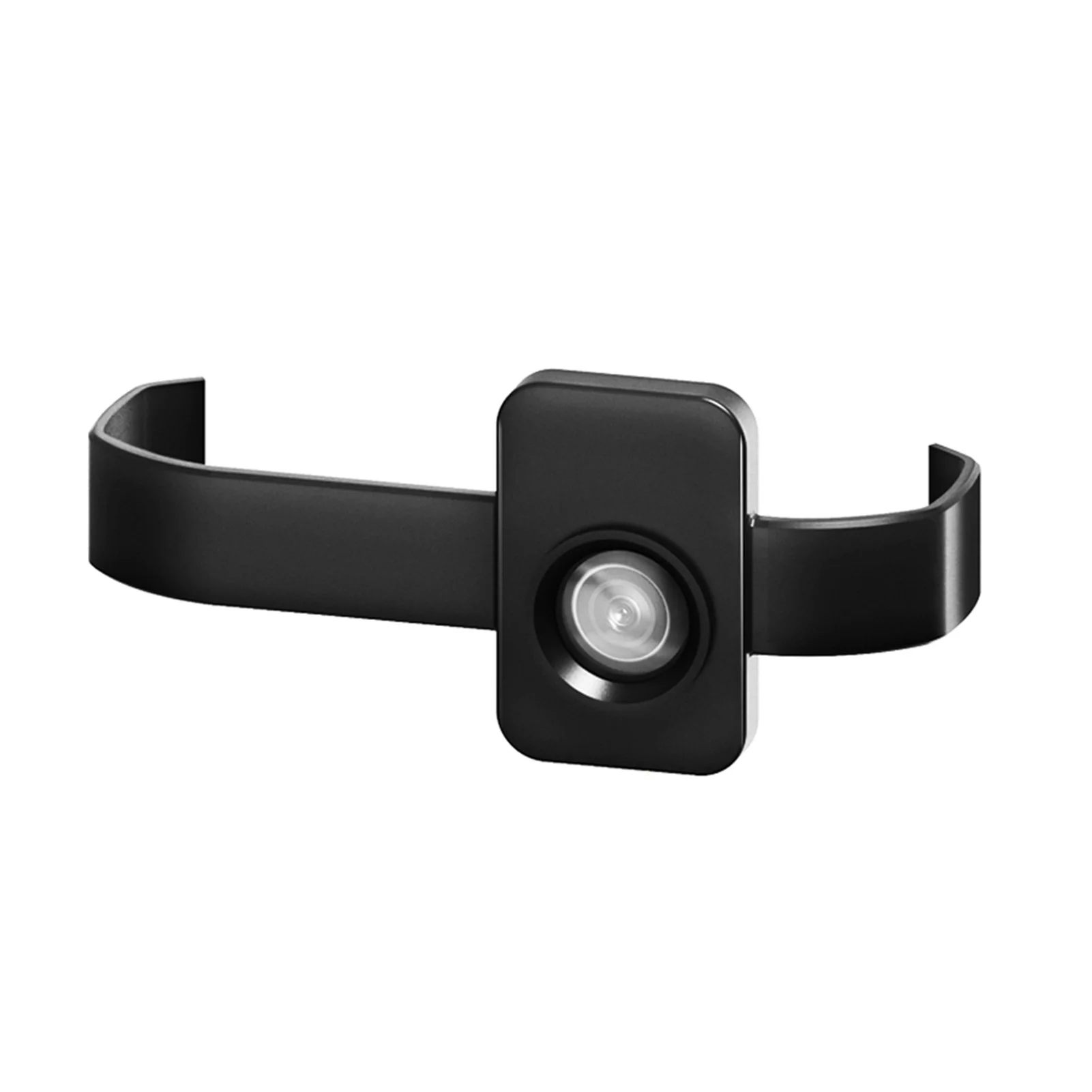

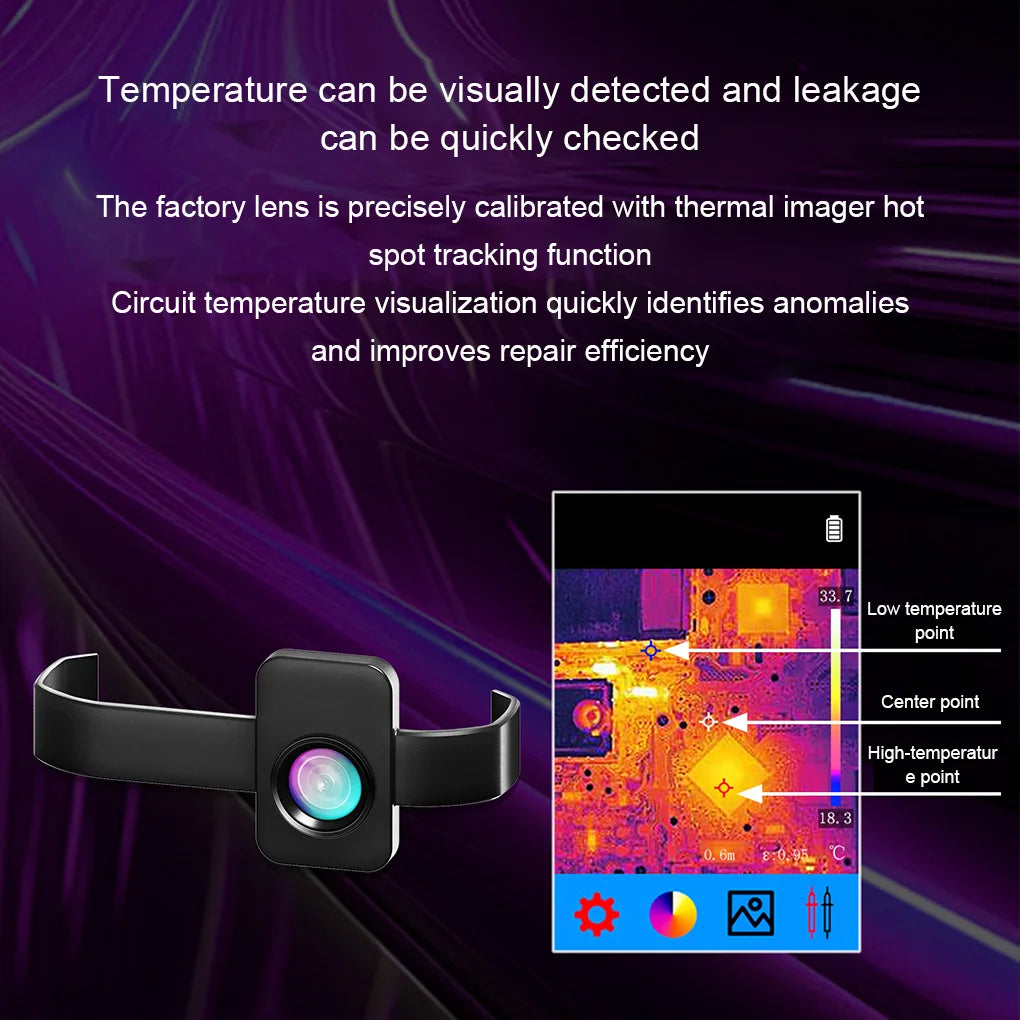

1x Ma-cro lens
